REEFS RC

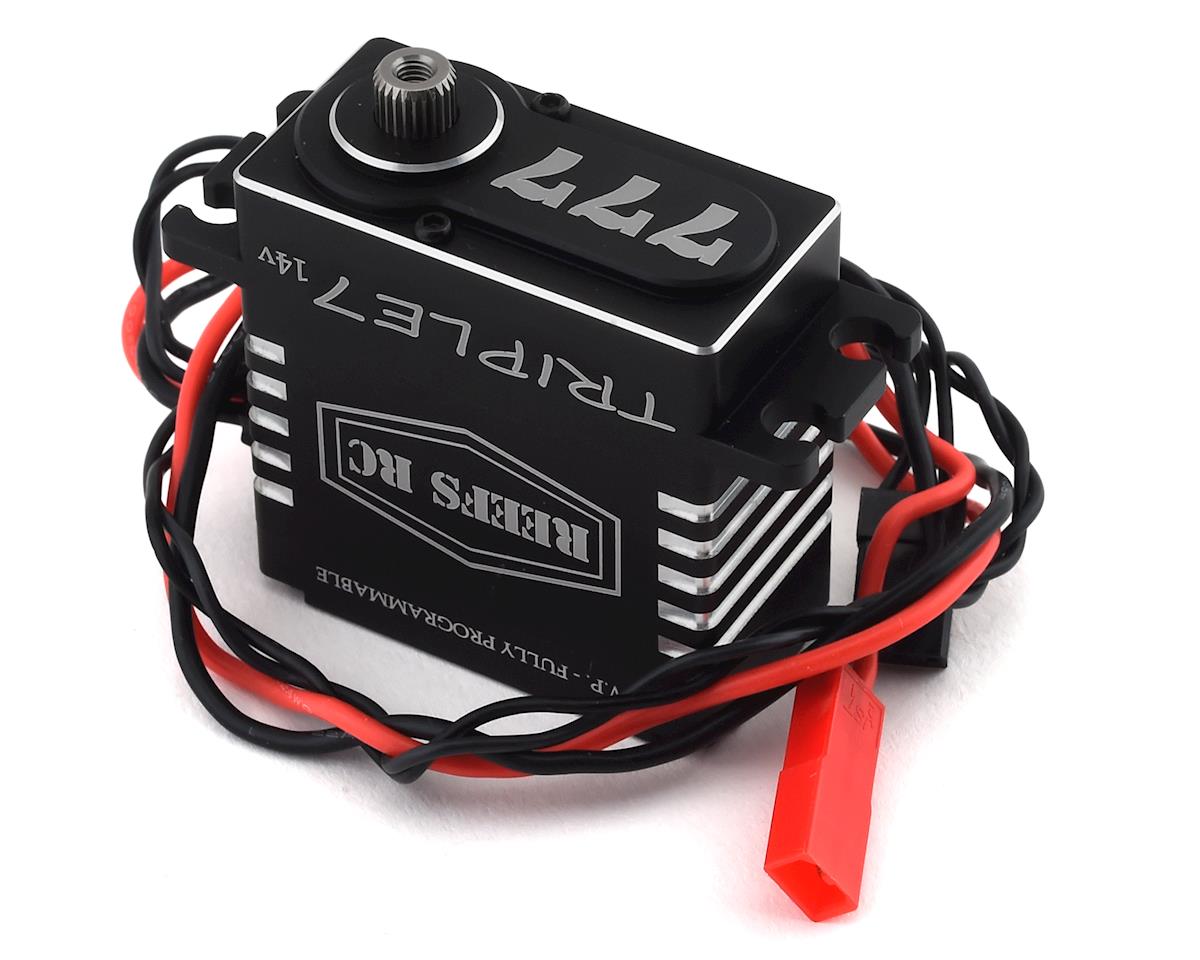

Triple7 Direct Power Brushless Servo (14v)

Triple7 Direct Power Brushless Servo (14v)

Regular price $157.77 USD
Regular price Sale price $157.77 USD
Sale Sold out

SPECIFICATIONS:

  • High Torque High Speed Brushless Servo
  • SUBMARINE WATERPROOF: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Fully Programmable w/ REEFS Software (REEFS LINK required)
  • Voltage: 10V - 14V MAX
  • Internal: Steel Gears / All CNC Aluminum Casing
  • Bearing Type: 3 Ball Bearings / Weight: 3.12oz
  • Dimensions: 1.57 x .78 x 1.63 (LWH)
  • Torque: 666oz @11.1v/ 700oz @12.0v/ 777oz @14v
  • Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v
  • Spline: 25T
  • Dead Band Width: 2¦Ìs

For programming, the USB Link is required.

Product Notes: Maximum input voltage of 14 volts. Use an M3x8mm max screw size for servo horn. Do not leave servo plugged into battery when not in use or damage will occur to battery pack due to over-discharge.
