REEFS RC

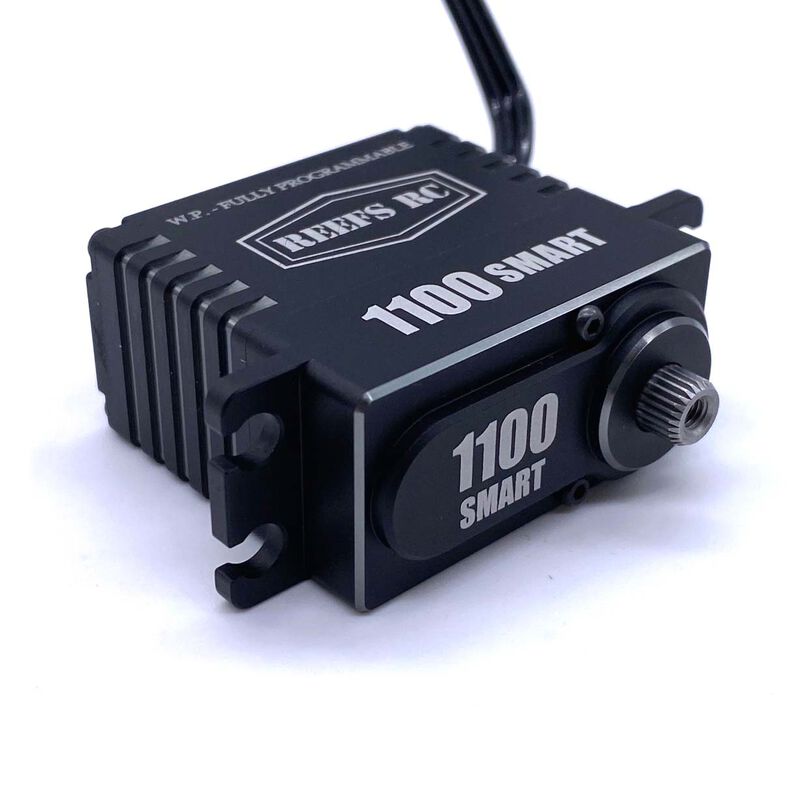

1100 Smart Brushless Servo

1100 Smart Brushless Servo

Regular price $189.00 USD
Regular price Sale price $189.00 USD
Sale Sold out

SPECIFICATIONS:

  • High Torque High Speed Brushless SERVO or WINCH
  • Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK (Sold seperately) and Software.
  • BUILT IN PREPROGRAMMED WINCH CONTROLLER
  • SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • 4 Pole Brushless Motor
  • Voltage: 4.8V - 8.4V
  • Internal: Steel Gears / All CNC Aluminum Casing
  • Bearing Type: 4 Ball Bearings / Weight: 2.99oz
  • Dimension: 1.57 x .79 x 1.5 (LWH)
  • Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v
  • Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
  • Spline: 25T
  • Dead Band Width: 2¦Ìs
  • BEC Not Req. (Recommended for max performance)
  • Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
  • Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V

For programming, the USB Link is required.

Item# REEFS119
